Strip Test Database
STRIP64 – Bandpass characterization (PWR3 blind)
General information
| Polarimeter | STRIP64 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona |
| Description | Bandpass characterization (PWR3 blind) |
| PHSW state | 0101 |
| Notes | The source data file was «SCI170727_110008 - STRIP64_Tcryo20K_RF_-40dBm_0101_27Jul2017_1.txt» (415 kB) |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (109.7 KB)

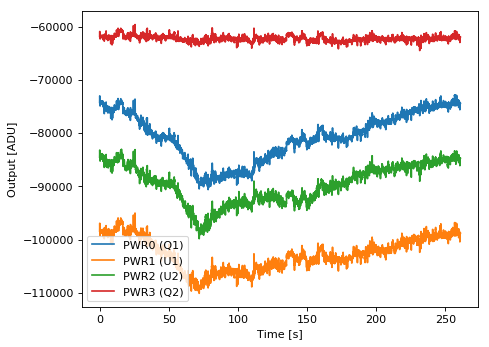

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.91 | 2.96 | 430.0 |
| H1 (HB1) | 0.91 | 3.15 | 503.0 |
| H2 (HA2) | 1.21 | 11.73 | 42.0 |
| H3 (HB2) | 1.21 | 11.0 | 119.0 |
| H4 (HA3) | 0.91 | 3.04 | 315.0 |
| H5 (HB3) | 0.91 | 7.01 | 320.0 |
