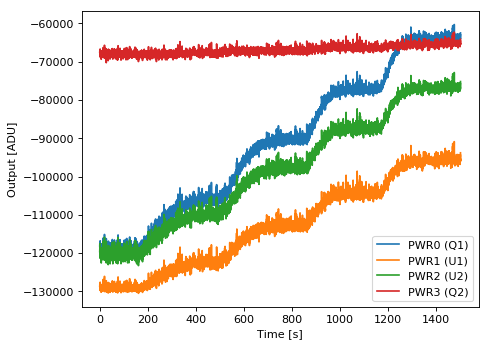

STRIP64 – Y-factor, cool-down (PWR3 blind)
General information
| Polarimeter | STRIP64 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona |
| Description | Y-factor, cool-down (PWR3 blind) |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170727_122219 - STRIP64_Y-Factor_LB_20K_down_50-40-30-20-10_PS0110_27Jul2017.txt» (2443 kB. The detector outputs are the average of the two short acquisitions with HEMTs turned off. |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (545.7 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.91 | 2.96 | 430.0 |
| H1 (HB1) | 0.91 | 3.15 | 503.0 |
| H2 (HA2) | 1.21 | 11.73 | 42.0 |
| H3 (HB2) | 1.21 | 11.0 | 119.0 |
| H4 (HA3) | 0.91 | 3.04 | 315.0 |
| H5 (HB3) | 0.91 | 7.01 | 320.0 |
Temperatures
| TA1 [K] | TA2 [K] | TB1 [K] | TB2 [K] | Tp1 [K] | Tp2 [K] | Tc1 [K] | Tc2 [K] | |
|---|---|---|---|---|---|---|---|---|
| 20.0 | 25.7 | 50.0 | 59.6 | 20.0 | 16.4 | 15.0 | 24.6 |
|
| 20.0 | 25.8 | 40.0 | 49.1 | 20.0 | 16.4 | 15.0 | 24.6 |
|
| 20.0 | 25.8 | 30.0 | 36.9 | 20.0 | 16.4 | 15.0 | 24.6 |
|
| 20.0 | 25.8 | 20.0 | 27.8 | 20.0 | 16.4 | 15.0 | 24.6 |
|
| 20.0 | 25.8 | 10.0 | 14.2 | 20.0 | 16.4 | 15.0 | 24.6 |
|
