Strip Test Database

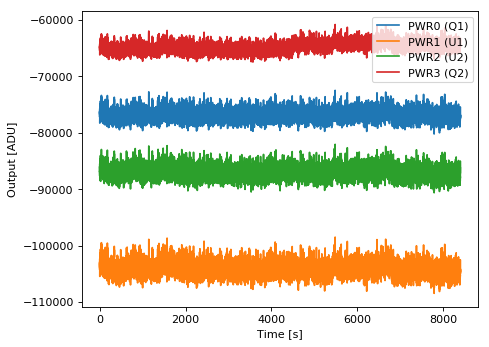

STRIP64 – Long acquisition
General information
| Polarimeter | STRIP64 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona |
| PHSW state | switching |
| Notes | The source data file was «SCI170727_133816 - STRIP64_1_f__PS-default_27Jul2017.txt» (14945 kB) |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (2.6 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.91 | 2.96 | 430.0 |
| H1 (HB1) | 0.91 | 3.15 | 503.0 |
| H2 (HA2) | 1.21 | 11.73 | 42.0 |
| H3 (HB2) | 1.21 | 11.0 | 119.0 |
| H4 (HA3) | 0.91 | 3.04 | 315.0 |
| H5 (HB3) | 0.91 | 7.01 | 320.0 |
