STRIP69 – Y-factor, warm-up (PWR0 blind)

General information

Edit  Delete

Polarimeter STRIP69
Acquisition date
BandQ
Cryogenic?Yes
OperatorsFederico Incardona
DescriptionY-factor, warm-up (PWR0 blind)
PHSW state0101
Notes

The source data file was «SCI170710_134754 - STRIP69_Y-Factor_LB_20K_up_10-20-30-40-50_PS0101_10Jul2017.txt» (2320 kB)

Authorfincardona
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1936 1892 2018 1958 Edit  Delete

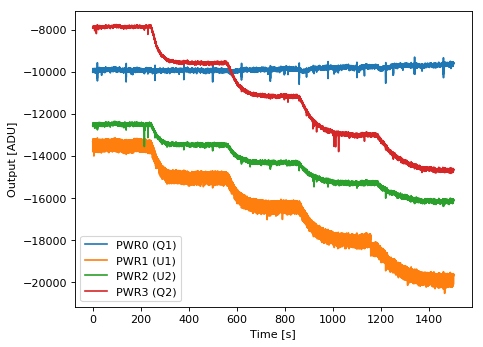

Detector outputs
PWR0 PWR1 PWR2 PWR3
4350 -1415 -195 1015 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 9.45 200.0
H1 (HB1) 0.9 10.6 200.0
H2 (HA2) 0.9 5.3 120.0
H3 (HB2) 0.9 4.5 100.0
H4 (HA3) 0.9 4.95 320.0
H5 (HB3) 0.9 5.35 240.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 25.47 10.0 13.51 20.0 16.42 15.0 24.48 Edit  Delete
20.0 25.47 20.0 27.2 20.0 16.42 15.0 24.48 Edit  Delete
20.0 25.47 30.0 36.3 20.0 16.42 15.0 24.48 Edit  Delete
20.0 25.47 40.0 47.98 20.0 16.42 15.0 24.48 Edit  Delete
20.0 25.47 50.0 59.4 20.0 16.42 15.0 24.48 Edit  Delete

Reports

Noise temperatures
Method Tnoise [K] GQ1 [ADU/K] GU1 [ADU/K] GU2 [ADU/K] GQ2 [ADU/K] Details Report Action
non-linear fit 40.4±1.8 230±8 225±7 213±6 178±7 JSON Download Edit  Delete
Bandpasses
Spectrum
