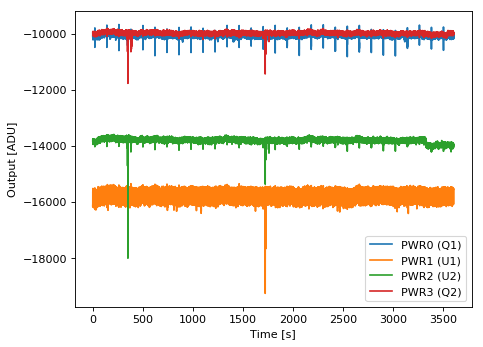

STRIP69 – Long acquisition
General information
| Polarimeter | STRIP69 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona |
| PHSW state | switching |
| Notes | The source data file was «SCI170710_151552 - STRIP69_1_f__PS-default_10July2017.txt» (6043 kB) |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (913.7 KB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 9.45 | 200.0 |
| H1 (HB1) | 0.9 | 10.6 | 200.0 |
| H2 (HA2) | 0.9 | 5.3 | 120.0 |
| H3 (HB2) | 0.9 | 4.5 | 100.0 |
| H4 (HA3) | 0.9 | 4.95 | 320.0 |
| H5 (HB3) | 0.9 | 5.35 | 240.0 |
