STRIP04 – Bandpass characterization (PWR0 blind)
General information
| Polarimeter | STRIP04 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona |
| Description | Bandpass characterization (PWR0 blind) |
| PHSW state | 0110 |
| Notes | The source data file was «SCI170612_151912 - STRIP04_Tcryo20K_RF -40dBm_0110_12Jun2017_2.txt» (419 kB) |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (96.0 KB)

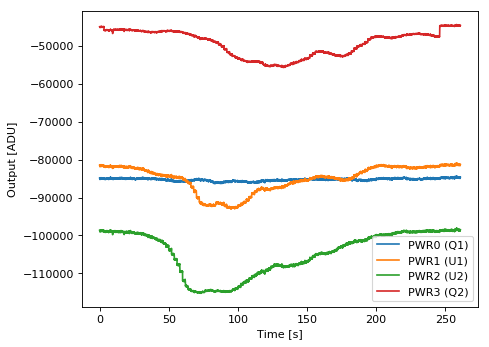

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 7.2 | 260.0 |
| H1 (HB1) | 0.9 | 11.0 | -270.0 |
| H2 (HA2) | 0.9 | 6.2 | 360.0 |
| H3 (HB2) | 0.9 | 7.0 | 500.0 |
| H4 (HA3) | 0.9 | 10.0 | 320.0 |
| H5 (HB3) | 0.9 | 4.5 | 300.0 |
