Strip Test Database

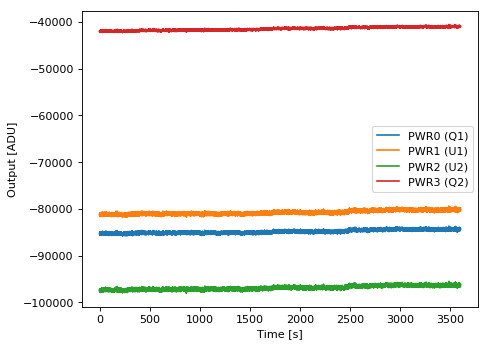

STRIP04 – Long acquisition
General information
| Polarimeter | STRIP04 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Federico Incardona |
| PHSW state | switching |
| Notes | The source data file was «SCI170612_171007 - STRIP04_1_f__PS-default_12Jun2017.txt» (6390 kB) |
| Author | fincardona |
| Date of creation | |
| JSON record | Link |
- Download data file (1.1 MB)
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.9 | 7.2 | 260.0 |
| H1 (HB1) | 0.9 | 11.0 | -270.0 |
| H2 (HA2) | 0.9 | 6.2 | 360.0 |
| H3 (HB2) | 0.9 | 7.0 | 500.0 |
| H4 (HA3) | 0.9 | 10.0 | 320.0 |
| H5 (HB3) | 0.9 | 4.5 | 300.0 |
