STRIP48 – Bandpass characterization (PS state: 1001)
General information
| Polarimeter | STRIP48 |
| Acquisition date | |
| Band | Q |
| Cryogenic? | Yes |
| Operators | Paola Battaglia, Claudio Pincella, Mario Zannoni |
| Description | Bandpass characterization (PS state: 1001) |
| PHSW state | 1001 |
| Notes | The source data file was «SCI170504_103859 - STRIP48_Tcryo20K_RF -35dBm_1001_QUIET_case-MC5_04May2017.txt» (398 kB) |
| Author | paola |
| Date of creation | |
| JSON record | Link |
- Download data file (98.0 KB)
ADC offsets

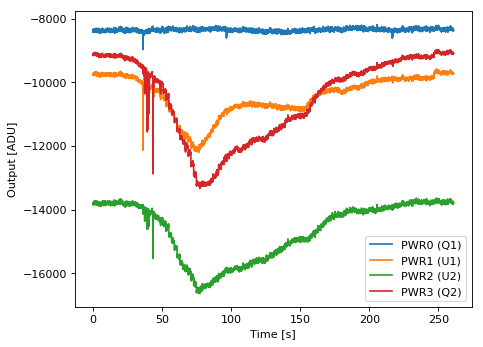

Detector outputs
HEMT biases
| HEMT | Vd [V] | Id [mA] | Vg [mV] |
|---|---|---|---|
| H0 (HA1) | 0.72 | 2.13 | 57.0 |
| H1 (HB1) | 0.9 | 5.3 | -13.0 |
| H2 (HA2) | 0.75 | 1.62 | 133.0 |
| H3 (HB2) | 0.75 | 3.47 | 254.0 |
| H4 (HA3) | 0.9 | 2.6 | -35.0 |
| H5 (HB3) | 0.75 | 1.62 | 133.0 |
