Strip Test Database

STRIP55 – Bandpass characterization cryo (PS state: 0110)

General information

Edit  Delete

Polarimeter STRIP55
Acquisition date
BandQ
Cryogenic?Yes
OperatorsPaola Battaglia, Claudio Pincella
DescriptionBandpass characterization cryo (PS state: 0110)
PHSW state0110
Notes

The source data file was «SCI170516_100635 - STRIP55_Tcryo20K_RF_-40dBm_0110_pol-JPL_16May2017.txt» (414 kB)

Authorpaola
Date of creation
JSON recordLink
ADC offsets
PWR0 PWR1 PWR2 PWR3
1985 1935 2017 1919 Edit  Delete
Detector outputs
PWR0 PWR1 PWR2 PWR3
-1300 1050 -1700 -1000 Edit  Delete
HEMT biases
HEMT Vd [V] Id [mA] Vg [mV]
H0 (HA1) 0.9 4.5 20.0
H1 (HB1) 0.9 5.0 56.0
H2 (HA2) 1.2 16.9 -192.0
H3 (HB2) 1.22 17.0 -225.0
H4 (HA3) 0.91 11.0 396.0
H5 (HB3) 0.93 12.0 418.0
Temperatures
TA1 [K] TA2 [K] TB1 [K] TB2 [K] Tp1 [K] Tp2 [K] Tc1 [K] Tc2 [K]
20.0 19.5 20.0 20.2 20.0 13.7 15.2 17.3 Edit  Delete

Reports

Noise temperatures
Bandpasses
Method Central frequency Bandwidth Details Report Actions
43.60±0.07 8.24±0.51 JSON Download Edit  Delete

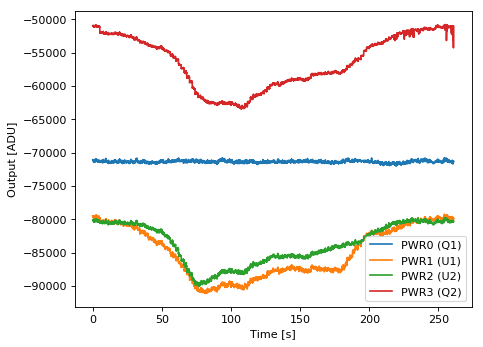

Spectrum
